Conveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough Model

Xinxiang jinrui machinery factory
Contact Now

Conveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough Model

  • 1
  • 2

Brand Name : JINRUI

Model Number : DT II

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 20 SET

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 3000 set per month

Delivery Time : 10-15 working days

Packaging Details : seaworthy packing

Materials : Carbon steel

Length : 800/950/1150/1350mm

Color : As request

Usuage : belt conveyor

Type : Trough

Product name : Roller Idler Frame

Contact Now

Conveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough Model
1. Product characteristics

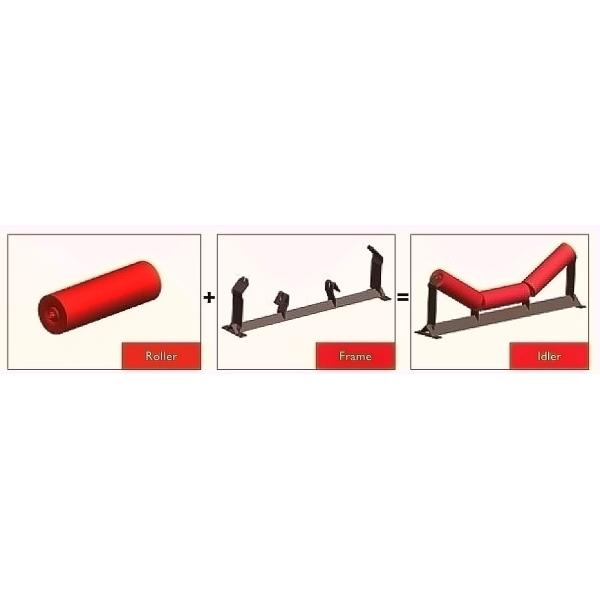

The roller idler frame has a simple and solid structure and is commonly installed in belt conveyors with a large number of types. The roller idler frame can fix the rollers and support the belt, which is an important support structure in the belt conveyor. The roller bracket made of high quality material also has the characteristics of stable performance and long service life.

Conveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough Model

2. Main function and scope of application

(1) Fixed rollers: High-quality roller supports are reasonably designed to make it more convenient to load and unload the rollers, and to ensure the flexibility of the rollers while fixing them! The radial runout amount and axial tampering amount of the rollers are controlled within a reasonable range.
(2) Support the belt: The bracket of the rollers is processed by high quality steel and welded by strict technology, which not only has standard specification but also has solid structure, which can provide stronger support force and ensure the smooth transportation of the rollers and the belt.
(3) Preventing deviation: The carrier roller bracket can make certain adjustment during the operation of the belt, which can play an effective role in adjusting the belt and increase the service life of the belt.
(4) Widely used: The structure of the support rollers is light, the process is simple, the service life is long and the maintenance cost is low. It is a widely used affordable and durable bracket structure.

3. Characteristic

(1) The structure of the roller support is simple, stable, light weight, strong support, high flexibility, low friction, and long service life, which is 2-5 times of similar products.
(2) High-quality roll support can guarantee the radial runout of rollers while ensuring the fixed role of rollers; flexibility and axial runout are within the stable range.
(3) High-quality roller support adopts fine steel structure, spraying anti-rust paint, which can effectively prevent dust and water, resist the corrosion of external environment, and increase the anti-aging ability by more than 50%!
(4) While providing support for the belt, the roller support can also provide correction and centering for the belt and prevent the role of runout.
(5) The bracket of the rollers, with simple production process and strong weight, is easy to install and maintain, which greatly reduces the production and maintenance costs!

4. Tech data
Belt Width 500mm 650mm 800mm 1000mm
Frame length 800mm 950mm 1150mm 1350mm

7.Packing Details:
1,Outer packing is plywood case, which is up to the international standards.
2,Inner packing is Moisture-proof and water-proof membrane.
3,All of package are wrapped by 0.5mm steel belt to further strengthen.
Conveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough ModelConveyor Spare Sparts 35 Degree Groove Angle Roller Idler Frame Trough Model
